Toyota flasher

can READ and WRITE via internal 20 pin or 26 pin connector.

connection diagram for all known pcb you can find here :

CONNECTION DIAGRAM

SUPPORTED DEVICES :

TOYOTA DENSO ENGINE CONTROL MODULE

based on NEC 7F00XX series MCU

76F0038

7F0038A

76F0039

76F0039A

76F0040

76F0040A

76F0070 BGA

76F0085 BGA

76F0086 BGA

saving in normal mode

without any master-slave.

master only.

auto CHECKSUM CORRECTION support

owners manual ( russian )

(инструкция по эксплуатации)

DO NOT USE

external 12V power for programmer if connect to car OBD connector!!!

use USB powering ONLY !!!

PROGRAMMER DB9 connector --> OBD connector

you can use OBD cable like this

CABLE fot TOYOTA flasher

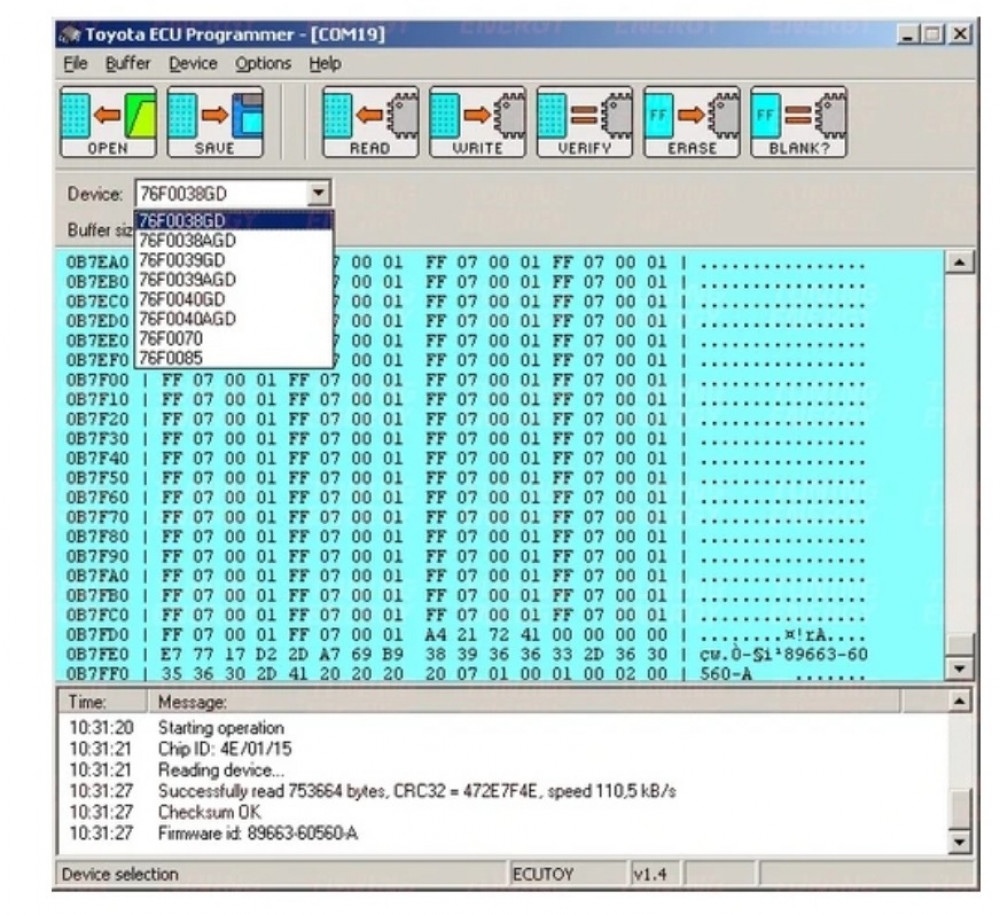

TOYOTA-LEXUS FLASHER

SOFTWARE

просто скопируйте эти ссылки в ваш браузер для загрузки

just copy these links into your browser for download

при желании можете проверить эти ссылки на вирусы онлайн. Вставьте ссылки сюда :

If you wish, you can check these links for viruses online. Insert the links here:

https://vms.drweb.com/online/?lng=en

пароль/password for ALL archives = autokey

STM32 virtual comport driver.rar

https://1drv.ms/u/s!AkPFIqWCtacbgni_kuZEPBckG_fV

--------- USB DRIVER ------------

Software version 1.16

https://1drv.ms/u/s!AkPFIqWCtacbgxTE7_LoQrZG7IYb?e=ZSOD4e

--------- SOFTWARE ------------

Software version 1.19

https://1drv.ms/u/s!AkPFIqWCtacbi0vHbrJ1YWt2hzha?e=wYtFfW
